Nexus S2 Plug 'n' Play Adapter Harness Kit - Nissan Silvia S15
Original price
$2,829.99
-
Original price
$2,829.99
Original price
$2,829.99
$2,829.99
-
$2,829.99
Current price
$2,829.99
Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.
- 4 x peak/hold injector drivers (can be used as low side drive outputs)
- 4 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
- 1 x ECR output
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination

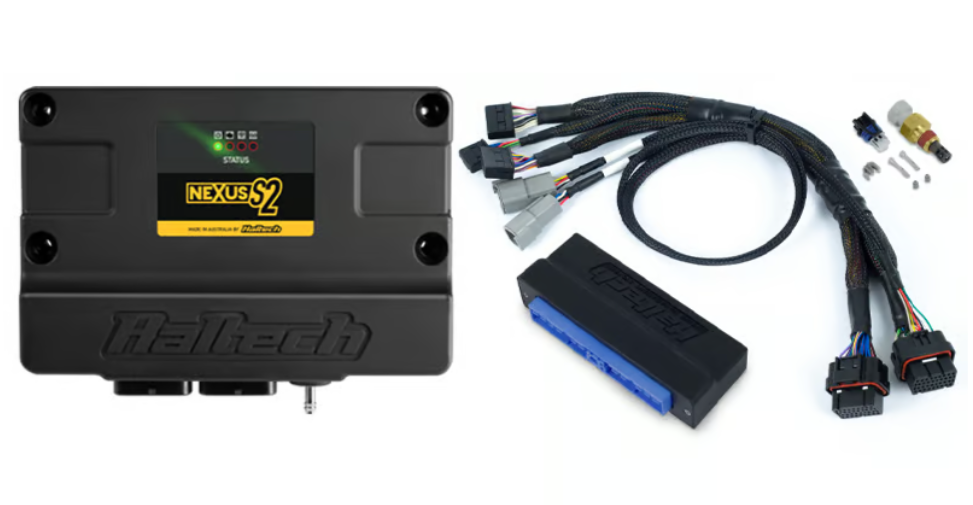

If you are using a factory harness and are after an easy ECU upgrade, take a look at Haltech Plug 'n' Play Adapter Kits. These adapters plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.
- A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.
- The quick start guide will walk you through installation of the Haltech Plug 'n' Play adapter into your vehicle.
Suits: Plug 'n' Play replacement of the factory ECU for Nissan 200SX/Silvia S15 (Australian Delivered and JDM) 200SX/Silvia S14A S2 "KOUKI" 180SX S13 Rev 3 "Type X" 1996 onwards Pulsar N15 and N14 SSS and GTI-R Micra K11 (CG13DE) Manual transmissions only.
